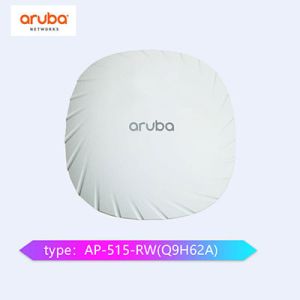

Indoor Aruba Ap 500 Series Access Point Secure WiFi6 (802.11ax)

• ARUBA 500 SERIES CAMPUS ACCESS POINTS
• AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO
• 5GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
• 2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with individual 2SS HE40 802.11ax client devices or with two 1SS HE40 802.11ax MU-MIMO capable client devices simultaneously
• Maximum number of associated client devices: Up to 256 associated client devices per radio
• Maximum number of BSSIDs: 16 BSSIDs per radio
• Supported frequency bands (country-specific restrictions apply):
  • 2.400 to 2.4835GHz ISM
  • 5.150 to 5.250GHz U-NII-1
  • 5.250 to 5.350GHz U-NII-2A
  • 5.470 to 5.725GHz U-NII-2C
  • 5.725 to 5.850GHz U-NII-3/ISM
  • 5.850 to 5.895GHz U-NII-4
• Available channels: Dependent on configured regulatory domain
• Supported radio technologies:
  • 802.11b: Direct-sequence spread-spectrum (DSSS)
  • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
  • 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units
• Supported modulation types:
  • 802.11b: BPSK, QPSK, CCK
  • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
  • 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
  • 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
• 802.11n high-throughput (HT) support: HT20/40
• 802.11ac very high throughput (VHT) support: VHT20/40/80
• 802.11ax high efficiency (HE) support: HE20/40/80
• Supported data rates (Mbps):
  • 802.11b: 1, 2, 5.5, 11
  • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
  • 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM
  • 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
  • 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
  • 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
• 802.11n/ac packet aggregation: A-MPDU, A-MSDU
• Transmit power: Configurable in increments of 0.5 dBm

• E0: Ethernet wired network port (RJ-45)	• Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX • POE-PD: 48Vdc (nominal) 802.3af/at POE (class 3 or 4) • 802.3az Energy Efficient Ethernet (EEE)
  DC power interface	12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
  USB 2.0 host interface (Type A connector)	Capable of sourcing up to 1A / 5W to an attached device
  Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio	• BLE: up to 7dBm transmit power (class 1) and -93dBm receive sensitivity (1Mbps) • Zigbee: up to 6dBm transmit power and -96dBm receive sensitivity Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.3dBi
  Visual indictors (two multi-color LEDs)	For System and Radio status
  Reset button	Factory reset, LED mode control (normal/off)
  Serial console interface	Proprietary, micro-B USB physical jack
  Security slot	Kensington security slot

•

• FAQ

• Q1.What can you buy from us?

  A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.

  Q2.How about the delivery date?

  A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

  Q3.What's your warranty terms?

  A: We supply 12 months warranty time.

  Q4.How about the Shipping Method?

  A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

  Q5.Can I get some samples?

  A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

  Q6.What are your core strengths?

  A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
