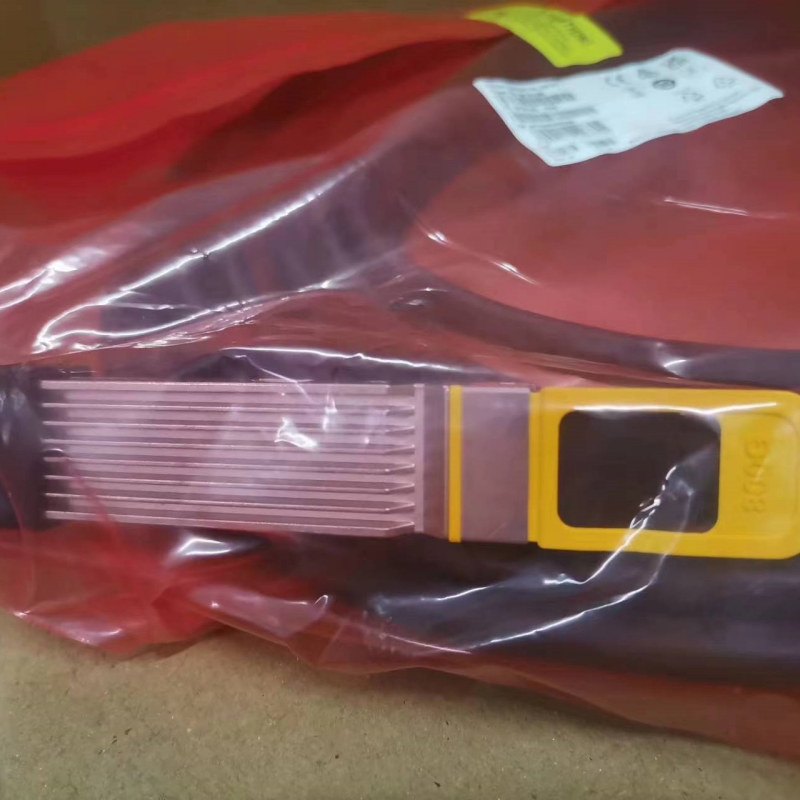

Mellanox DAC Cable MCA4J80-N005 Active Copper Cable IB Twin Port NDR 800Gb/s OSFP 5 meters
MCA4J80-N005 HPE InfiniBand NDR OSFP to OSFP 5m Switch-Switch Active Copper Cable
MCA4J80-N005 is a 800Gb/s twin-port OSFP (Octal Small Formfactor Pluggable)-to-2x400Gb/s twin-port OSFP Active Copper Cable (ACC) for InfiniBand NDR networking.
MCA4J80-N005 ACC cables are the second lowest-cost, lowest-latency, very low-power consuming, high-speed links available due to their simplicity of design and minimal components. The “active” term refers to the passive copper cable with an equalizer integrated circuit to extend the length to 3, 4, and 5 meters while maintaining very low-latency and very low-power at 1.5 Watts per end. Thin 30AWG is used for 4m lengths and thicker 26AWG for 5m. Each end includes an EEPROM which provides product identification and characteristics to the host system. For lengths less than 3 meters, use passive DAC cables.
Mellanox DAC Cable MCA4J80-N005 parameter form
| Item | features |
| Manufacturer Part Number | MCA4J80-N005 |
| Cable Type | InfiniBand |
| Cable Length | 16.40 ft |
| Connector Type on First End | OSFP Network |
| Connector Type on Second End | OSFP Network |
| Features | Active |
| Device Supported | Network Device |
| Data Transfer Rate | 800 Gbit/s |
